固定式液压升降台
< >

索斯沃斯固定式液压升降台是非常稳固和可靠的设备。用于机器进给,工作定位,装配,拣选,托盘装载以及各种其他应用。 固定式升降平台有多种基本尺寸和载重可供选择,可承受高达3吨的载荷以及行程高度可达1422毫米。可为众多产品提供多种电源选项,控制,平台和底座配置。

许多设备升降台可在标准发货期内发货。致电 +86 021-57491919或 发送邮件到 sales@southworth-apac.com

● 液压升降台,载重为1,2和3吨

● 升降行程可达1422毫米

● 平台外形尺寸可达1067毫米x2438毫米

● 可选平台,包括输送机平台,球形输送平台和转盘

● 定制表面处理,包括双组份环氧树脂,耐腐蚀涂层和不锈钢涂层

● 标准产品可用于快速装运

● 低压液压系统

● 快速升降

● 完全可调节的速度

● 重型扭矩管,以尽量减少变形

● 销轴,滚轴和衬套在升降过程中一直处于润滑状态

● 直通轴,可在整个行程范围内提高稳定性

● 重型钢丝编织软管,具有较强的爆强度

● 信号装置可检测液压管路可防止液体溢出

● 内置维修检测用安全支撑

● 螺栓固定的动力单元 - 整洁,干净,易于维护


网上订购
购物车中的商品
有疑问或评论?
  • 申请人姓名:
  • E-mail:
  • *
  • 公司 (*)
  • 地址 (*)
  • 城市 (*)
  • 区域 (*)
  • 电话
  • *
  • 详细说明:
  • *

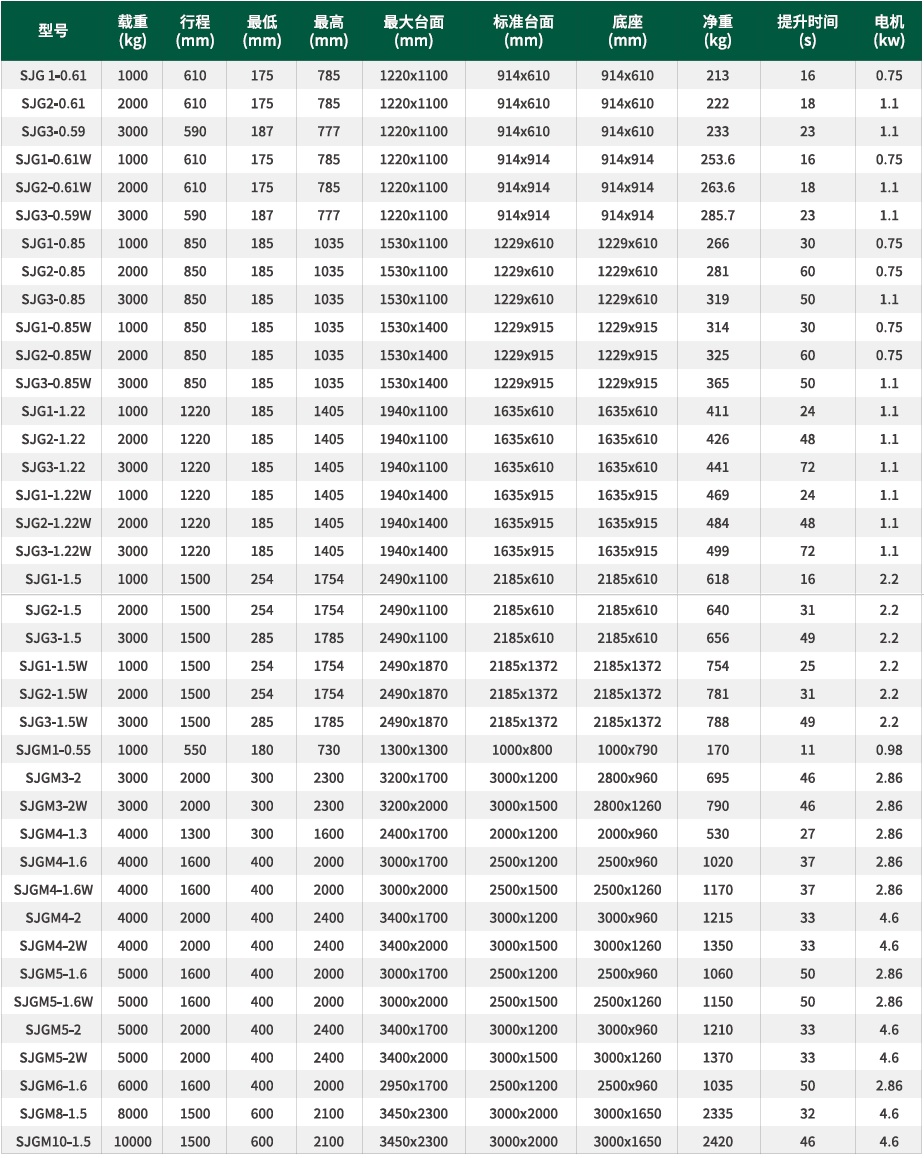

后挡板液压升降台规格

固定式液压升降台

选项和配件
  • GRAVITY CONVEYOR TOPS
  • BALL TRANSFER TOPS
  • FORK POCKETS
  • PORTABILITY / SEMI-LIVE ARRANGEMENT
  • BELLOWS ACCORDIAN SKIRTING
  • PIT MOUNTED UNITS
  • OVERSIZED PLATFORMS
  • 12V DC & 24V DC POWER UNITS
  • SUPER CYCLE
  • LOWER LEVEL LIMIT SWITCH
  • VELOCITY FUSE
  • UPPER TRAVEL LIMIT SWITCH
  • WATER WASH DOWN MOTOR PACKAGE
  • OPTIONAL POWER UNIT UPGRADES
  • GRAVITY CONVEYOR TOPS
    GRAVITY CONVEYOR TOPS

    Roller conveyor mounted to platform transferring item on or off of lift. For integration with conveyor systems.

  • BALL TRANSFER TOPS
    BALL TRANSFER TOPS

    Platforms can be supplied with pneumatic ball transfers to allow for easy repositioning of items for access to all sides or transferring loads on to or off of lifts.

  • FORK POCKETS
    FORK POCKETS

    Allow lift to be easily picked up and moved with a fork lift.

  • PORTABILITY / SEMI-LIVE ARRANGEMENT
    PORTABILITY / SEMI-LIVE ARRANGEMENT

    A variety of portability options are available including 4 casters, or semi-live with skid spotter


  • BELLOWS ACCORDIAN SKIRTING
    BELLOWS ACCORDIAN SKIRTING

    Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris. Pleats expand and contract as unit raise and lowers.

  • PIT MOUNTED UNITS
    PIT MOUNTED UNITS

    Lifts can be configured for use in a pit. This allows the platform to sit flush with the floor when not in use to minimize obstructions.

  • OVERSIZED PLATFORMS
    OVERSIZED PLATFORMS

    Platforms larger than standard are available. See chart above for MAX Platform dimensions.

  • 12V DC & 24V DC POWER UNITS
    12V DC & 24V DC POWER UNITS

    Lifts can be configured for DC power with 12 volt or 24 volt motors.

  • SUPER CYCLE
    SUPER CYCLE

    For extremely high duty cycles lifts can be equipped with a Super Cycle Package that extends recommend time between maintenance to 200,000 cycles

  • LOWER LEVEL LIMIT SWITCH
    LOWER LEVEL LIMIT SWITCH

    prevents the lift table from traveling below a preset level.
